New organic vibrator design

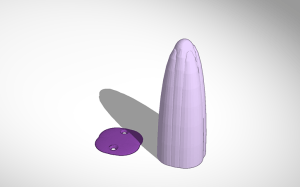

organic_wide_-_hole_20_-_finalWe have two new vibrator cases for the body interaction vibrator development board vibrator. Both have organic forms. The difference between them is the thickness on the top.  Both version comes with a cap which are fixed with three M3 screws.

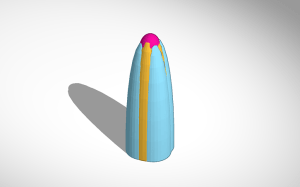

copy_of_organic_wide_-_hole_20_-_finalThey are constructed with Tinkercad. The design is still simple. The complete form is composed out of 9 half spheres.

Another difference to all earlier designs is a change in the inner hole form. It is smaller to fit better the development board.

Printout with XYZ printer, ABS:

IMG_20150506_213838IMG_20150506_213905

Try to construct your own with Tinkercad:
https://tinkercad.com/things/5aSU5KCTWal
https://tinkercad.com/things/k8JcnN2Eqtj (wide)

Or download from Thingiverse:

http://www.thingiverse.com/thing:813747
